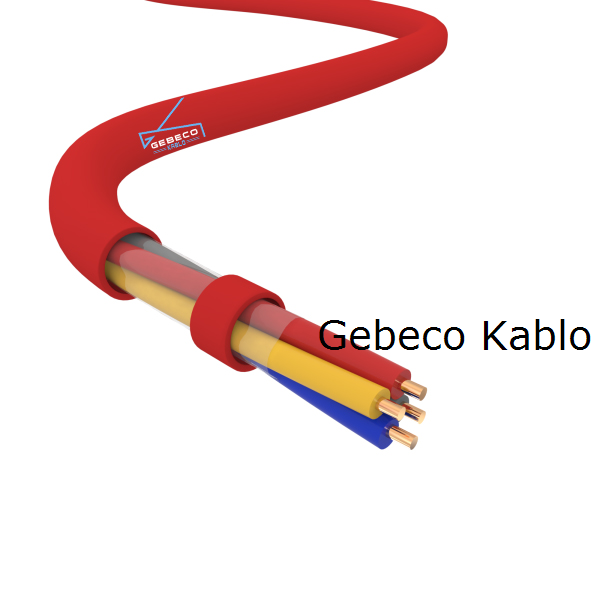

JE-HH…Bd

Place of use

These cables are used for fixed building fittings to provide signal communication. This type of cables is halogen-free, has flame-retarder and low smoke density.

Structure


LOOP
RESISTANCE		INSULATION
RESISTANCE		MUTUAL
CAPACITY		OPERATING
VOLTAGE		TEST VOLTAGEBENDING
RADIUS		TEMPERATURE RANGE

0,6 mm
0,8 mm
1,0 mm
1,5 mm2
2,5 mm2		Ω/km
130
73,2
44,6
24,6
14,8		MΩxKm
100		100 nF/km(Max)300 V0,6 mm ve 0,8 mm 800 V
≥ 1,0 mm 1000 V		10X D- 5ºC+50ºC Hareketli
- 30ºC+70ºC Sabit
FLAME RETARDANT
TEST		SMOKE DENSITY
TEST		TEST ON CORROSIVENESS
OF COMBUSTION GASES		HALOGEN FREE
TEST		FLAME RETARDANT
TEST
IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2		IEC 61034-2
VDE 0482-1034-2
EN 61034-2		IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3		IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1		IEC 60332-3-24
VDE 0482-332-3-24
EN 60332-2-24

Product Code Dimension and Weights Electrical Properties
Nominal Cross Section Overall Diemeter
( ~ )		 Net Weight
( ~ )		 Standart Lenght Max. Dc Conductor Resistance at 20◦ C Current Carrying Capacity
In Ground at 20° C On Air at 30° C

Technical Info


CONDUCTOR
RESISTANCE

INSULATION
RESISTANCE

CURRENT CARRYING
CAPACITY

OPERATING
VOLTAGE

TEST
VOLTAGE

BENDING
RADIUS

TEMPERATURE
RANGE






Ω/km

MΩxKm



nF/km

225 V

1000V

10XD

-30ºC +70ºC



0,80mm

73.20

≥ 100

0,80mm

100



1,00mm

43.80

1,00mm



1,50mm²

24.20

1,50mm²



2,50mm²

14.50

2,50mm²




FLAME  TEST

FLAME RETARDANT TEST

SMOKE DENSITY TEST

TEST ON CORROSIVENESS
OF COMBUSTION GASES

HALOGEN
FREE TEST




IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2
BS EN 60332-1-2

IEC 60332-3-24
VDE 0482-332-3-24
EN 60332-3-24
EN 60332-3-24

IEC 61034-2
VDE 0482-1034-2
EN 61034-2
BS EN 61034-2

IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3
BS EN 50267-2-3

IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1
BS EN 50267-2-1
