RG 11/U-4 CCS/CUSN PE

Place of use

These cables are used as main line cable in CATV and CCTV systems where low attenuation and high frequency transmittance is desired. They are suitable for outdoor uses.

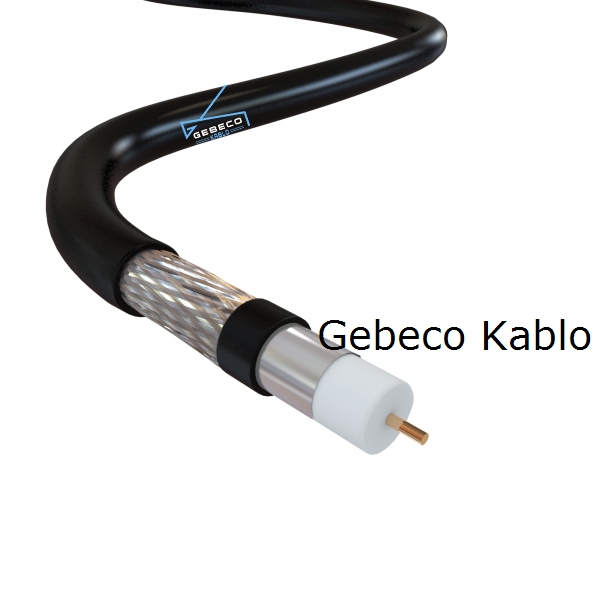

Structure

Inner Conductor

1,63 mmØ Copper Clad Steel Wire

Insulation

7,15 Ø Physical Foam PE

1.Screen

100 % Coverage Al-Pes Tape

2.Screen

Tinned Copper Wire Braiding, %55 coverage

Outer Sheath

10,20 Ø PE Compound, RAL 9005 Black



Product Code Dimension and Weights Electrical Properties
Nominal Cross Section Overall Diemeter
( ~ )		 Net Weight
( ~ )		 Standart Lenght Max. Dc Conductor Resistance at 20◦ C Current Carrying Capacity
In Ground at 20° C On Air at 30° C

Technical Info

INSULATION
RESISTANCE		MUTUAL
CAPACITANCE		VELOCITY OF
PROPAGATION		OPERATING
VOLTAGE		TEST
VOLTAGE		BENDING
RADIUS		TEMPERATURE
RANGE		IMPEDANCEFLAME RETARDANT
TEST
MΩxkm
>2000		53±2 pF/mt82 %2 kV5 kV20x D mm-40ºC+70ºC75±3ΩIEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2
