RG 6/U-6 CCS/CU HFFR

Place of use

They are used as distribution cables in indoors CATV and CTV systems; and as connection cables in SATV satellite antenna systems where low attenuation is desired. This type of cables is halogen-free, has flame-retarder and low smoke density.

Structure

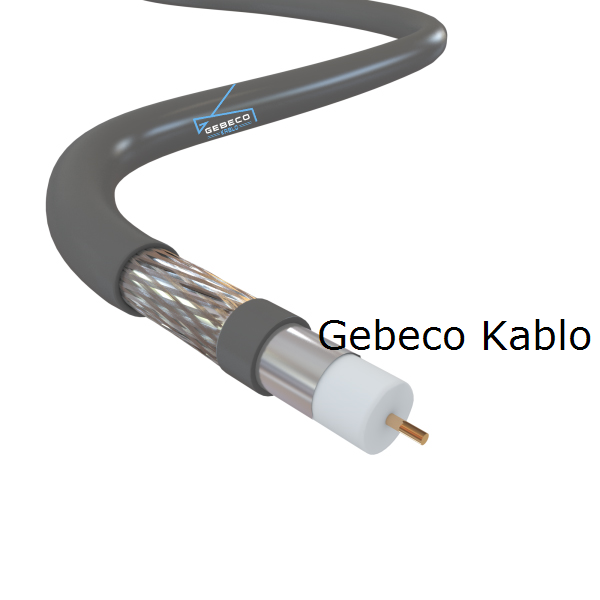

Inner Conductor

1,02 mmØ Copper Clad Steel Wire

Insulation

4,60 Ø Physical Foam PE

1.Screen

100 % Coverage Cu-Pes Tape

2.Screen

Electrolytic Copper Braid, %55 coverage

Outer Sheath

6,90 Ø HFFR Compound, RAL 7001 Grey




Product Code Dimension and Weights Electrical Properties
Nominal Cross Section Overall Diemeter
( ~ )		 Net Weight
( ~ )		 Standart Lenght Max. Dc Conductor Resistance at 20◦ C Current Carrying Capacity
In Ground at 20° C On Air at 30° C

Technical Info


INSULATION
RESISTANCE		MUTUAL
CAPACITANCE		VELOCITY OF
PROPAGATION		OPERATING
VOLTAGE		TEST VOLTAGEBENDING
RADIUS		TEMPERATURE
RANGE		IMPEDANCE
MΩxkm >200053±2 pF/mt82 %1,3 kV3 kV20x D mm-40ºC+70ºC75±3 Ω
FLAME RETARDANT
TEST		SMOKE DENSITY
TEST		TEST ON CORROSIVENESS OF
COMBUSTION GASES		HALOGEN FREE
TEST		FLAME PROPOGATION
TEST
IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2		IEC 61034-2
VDE 0482-1034-2
EN 61034-2		IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3		IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1

IEC 60332-3-25
VDE 0482-332-3-25
EN 60332-3-25
