RG 11/U-6 CU/CU TRISHIELD HFFR

Place of use

These cables are used as main line cable in CATV and CCTV systems where low attenuation and high frequency transmittance is desired. This type of cables is halogen-free, has flame-retarder and low smoke density.

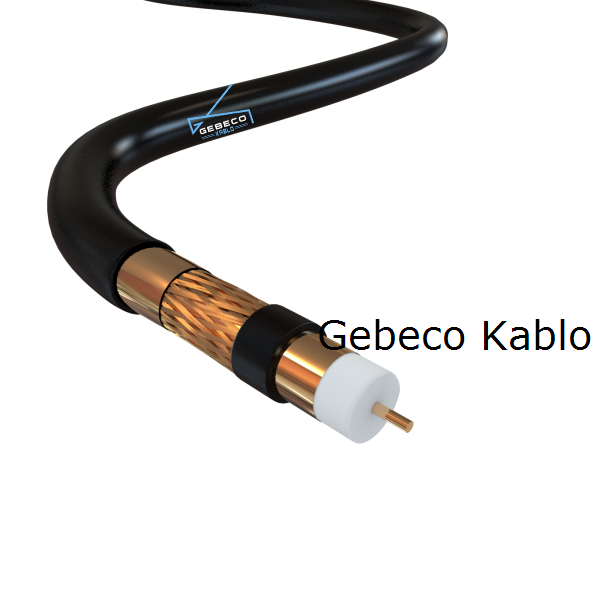

Structure

Inner Conductor

1,63 mmØ Electrolytic Solid Copper

Insulation

7,15 Ø Physical Foam PE

1.Screen

100 % Coverage Cu-Pes Tape

2.Screen

Electrolytic Copper Braid, %55 coverage

1.Screen

100 % Coverage Cu-Pes Tape

Outer Sheath

10,30 Ø HFFR Compound, RAL 7001 Grey



Product Code Dimension and Weights Electrical Properties
Nominal Cross Section Overall Diemeter
( ~ )		 Net Weight
( ~ )		 Standart Lenght Max. Dc Conductor Resistance at 20◦ C Current Carrying Capacity
In Ground at 20° C On Air at 30° C

Technical Info

INSULATION
RESISTANCE		MUTUAL
CAPACITANCE		VELOCITY OF
PROPAGATION		OPERATING
VOLTAGE		TEST VOLTAGEBENDING
RADIUS		TEMPERATURE
RANGE		IMPEDANCE
MΩxkm >200053±2 pF/mt82 %2 kV5 kV20x D mm-40ºC+70ºC75±3 Ω
FLAME RETARDANT
TEST		SMOKE DENSITY
TEST		TEST ON CORROSIVENESS OF
COMBUSTION GASES		HALOGEN FREE
TEST		FLAME PROPOGATION
TEST
EC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2		IEC 61034-2
VDE 0482-1034-2
EN 61034-2		IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3		IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1		IEC 60332-3-25
VDE 0482-332-3-25
EN 60332-3-25
